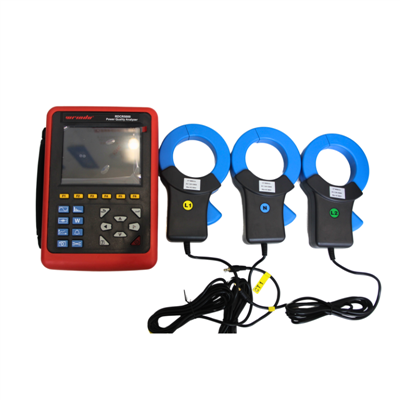

Triple-clamp Digital Phase Clamp Voltmeter
RDML-400A triple-clamp digital phase clamp voltmeter: Kev ntsuas meej, ntau yam kev siv, thiab tus neeg siv-phooj ywg tsim rau cov kws tshaj lij hluav taws xob.
Qauv: RDML-400A
Cim npe nrov: Tuam Tshoj triple-clamp digital theem clamp voltmeter manufacturers, hoobkas
|
Qauv No |
RDML-400A |
|||
|
Kev ntsuas muaj nuj nqi |
Kev ntsuas ntau |
Kev daws teeb meem |
Basic yuam kev |
|
|
Qhov hluav taws xob |
AC 0 00V-600V |
0.01V |
± ({0}}.5% ntau yam) |
|
|
Tam sim no |
AC {{0}} 0mA-20.0A |
0.1mA |
± ({0}}.5% ntau yam) |
|
|
Phase txoj hauj lwm |
{{0}}.0 degree -360 degree |
0.1 degree |
± 1 degree |
|
|
Active zog p |
{{0}}.0W-12kW |
0.1W |
± (1.0% ntau) |
|
|
Reactive zog Q |
{{0}}.0var-12kvar |
0.1var |
± (1.0% ntau) |
|
|
Pom zog s |
{{0}}.0VA-12kVA |
0.1VA |
± (1.0% ntau) |
|
|
Zaus f |
45Hz-65Hz |
0.01Hz |
± (1.0% ntau) |
|
|
Lub zog muaj zog PF |
-1-+1 |
0.001 |
±0.03 |
|
|
Fais fab mov |
DC 9V 5 # roj teeb 1.5V (LR06) x6 |
|||
|
Lub puab tsaig loj |
Φ8 hli |
|||
|
LCD loj |
2 8-inch TFT |
|||
|
Cov ntaub ntawv khaws cia |
500 pawg |
|||
|
Cov ntaub ntawv upload muaj nuj nqi |
USB interface, cov ntaub ntawv khaws cia upload rau lub computer, yooj yim rau kev txheeb xyuas thiab tswj cov ntaub ntawv |
|||
|
Tsis siv neeg kaw |
Tsis siv neeg kaw hauv 15 feeb |
|||
|
Hwj chim |
Tig lub teeb rov qab: qhov siab tshaj plaws ua haujlwm tam sim no yog li 80mA, thiab lub roj teeb ua haujlwm tsis tu ncua rau 8 teev |
|||
|
Tua lub teeb rov qab: qhov ua haujlwm tam sim no yog li 50mA, thiab lub roj teeb ua haujlwm tsis tu ncua rau 12 teev |
||||
|
Ib puag ncig ua haujlwm |
-10 degree ~ 40 degree ; qis dua 80% RH |
|||
|
Cia ib puag ncig |
-10 degree ~ 60 degree; qis dua 70% RH |
|||
|
theem sequence |
Cov theem ib txwm: U1, U2, U3 lossis I1, I2, I3 cursor flashes ntawm sab laug mus rau sab xis |
|||
|
Rov qab theem: U1, U2, U3 lossis I1, I2, I3 cursor flashes ntawm sab xis mus rau sab laug |
||||
|
Kuaj kab ntev |
1.5m |
|||
|
Tam sim no clamp hlau ntev |
2 m |
|||
|
Ntsuas lub sij hawm |
2 vib nas this/lub sij hawm |
|||
|
Cov ntaub ntawv tuav |
Thaum lub sij hawm xeem, nias lubTHOVyuam kom khaws cov ntaub ntawv, "HD"cim qhia |
|||
|
Input impedance |
Lub input impedance ntawm qhov ntsuas voltage yog 1MΩ |
|||
|
Tsawg roj teeb |
Thaum lub roj teeb hluav taws xob qis dua 7.2V, lub cim ntawm lub roj teeb hluav taws xob qis yuav raug tso tawm kom ceeb toom koj kom hloov lub roj teeb. |
|||
|
Siab tsis kam |
Lub ntsuas hluav taws xob thiab lub kaw lus tiv taus 1000V / 50Hz sine wave AC voltage rau 1 feeb |
|||
|
Rwb thaiv tsev |
Nruab nrab ntawm qhov ntsuas hluav taws xob thiab lub plhaub plhaub Ntau dua lossis sib npaug ntawm 100 MΩ |
|||
|
Qauv |
Ob chav rwb thaiv tsev, nrog insulating anti vibration sheath |
|||
|
Haum rau kev tswj hwm kev nyab xeeb |
IEC 61010-1 CAT Ⅲ 600V, IEC61010-031, IEC61326, Cov pa phem theem 2 |
|||
|
|
